Sizes and Dimensions: Aluminum truss systems are available in a range of sizes and dimensions to accommodate different stage layouts and load requirements. Sizes are often specified in terms of the truss's overall width, height, and length.
Connections: Aluminum truss pieces are connected using specialized connectors, bolts, and pins designed to ensure secure and stable joints. Quick-connect systems are often used to simplify assembly and disassembly processes.
packing weight:1300kg
packing volume:10cbm
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| 9.00 m Beam(front) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 6pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 6.00 m Beam(side) | 2 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 5.00 m Pillar | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| Frame Tower | Spigot Sleeve Block S | 4pcs | ||||||

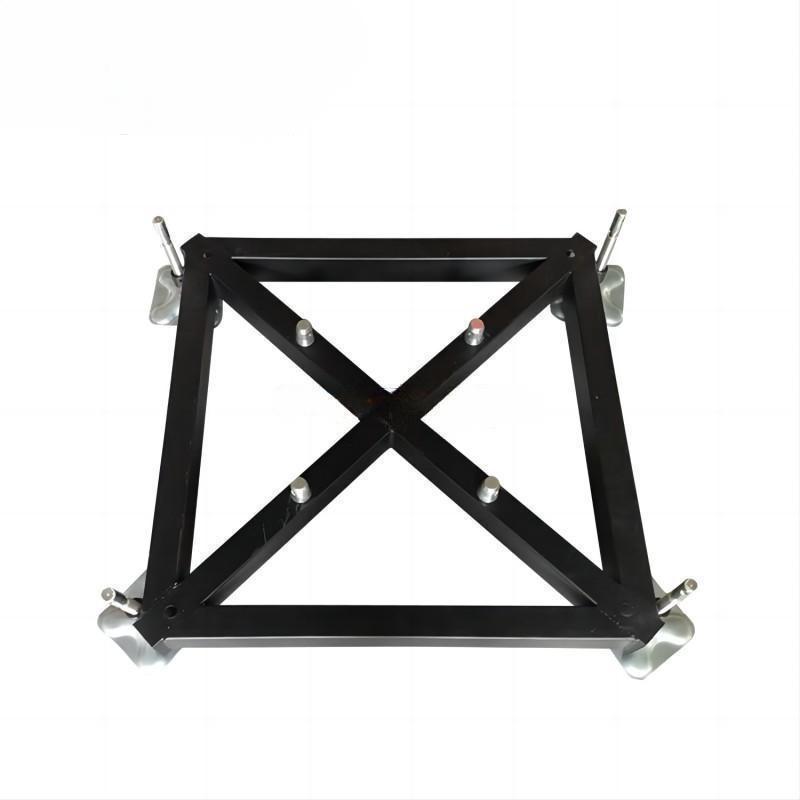

| Steel Base S | 4pcs | |||||||
| Top Section S | 4pcs | |||||||
| Manual hoist,BA05 2Tons | 4pcs | |||||||
| Spigot Hinge Section,Height 1m | 4pcs | |||||||
| Fibre sling,BA04,2 tons 3m | 4pcs | |||||||
| Long outrigger | 16pcs | |||||||
| Item | Specification(squre truss) | Qty | ||||||
| length | main tube(mm) | size(mm) | ||||||
| Roof Pillar | 2 sets | .90 m | 50×3.0 | CS289×289 | 2pcs | |||
| 6.00 m Top Beam | 1 sets | 3.00 m | 50×3.0 | CS289×289 | 2pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 4.70 m Oblique Beam | 4 sets | 3.00 m | 50×3.0 | CS289×289 | 4pcs | |||
| 2.00 m | 50×3.0 | CS289×289 | 0pcs | |||||
| 1.70 m | 50×3.0 | CS289×289 | 4pcs | |||||
| 4.70 m Ladder truss | 4 sets | 3.00 m | 50×3.0 | CL30,289*50 | 4pcs | |||
| 2.00 m | 50×3.0 | CL30,289*50 | 0pcs | |||||
| 1.70 m | 50×3.0 | CL30,289*50 | 4pcs | |||||
| Roof Components | roof conner 4 ways, use for roof beam truss | CS289×289 | 2pcs | |||||
| roof conner 5 ways, use for roof beam truss | CS289×289 | 0pcs | ||||||
| Connect plate with clamp | 2pcs | |||||||
| Single clamp | 8pcs | |||||||
| Double clamp | 8pcs | |||||||
| roof canopy material:pvc, Blue Colour or customized. | 114.66 | 1pcs | ||||||
packing weihgt: 1850kg
packing volume: 16cbm
| Item | Specification | Quantity | |||
| Aluminium assembly stage | topping: 4x4ft (1.22x1.22m) |
wooden | 35 pcs | ||
| 1.22m stage brace | 82 pcs | ||||
| stand with extendable tube | 48 pcs | ||||
| Stage adjustable base | 48 pcs | ||||
| Stage Stair | wooden topping | total | 7 | steps | 2 pcs |
packing weight: 900kg
packing volume: 6cbm
| Item | Specification | Quantity | ||||||
| Aluminum assembly stage | topping: 4x8ft (1.22x2.44m) |
wooden | 12 pcs | |||||
| 1.22m stage brace | 16 pcs | |||||||
| 2.44m stage brace | 15 pcs | |||||||
| stand with extendable tube | 20 pcs | |||||||
| Stage adjustable base | 20 pcs | |||||||
| Stage Stair | wooden topping | total | 8 | steps | adjustable to the stage height | 2 pcs | ||
In the realm of live entertainment, the concert roof truss plays a pivotal role in elevating the audience's experience. This structural framework serves as a platform for suspending speakers, lighting fixtures, and other essential equipment, ensuring optimal sound and visual performance.
Custom-designed outdoor aluminum stage truss roof systems provide a versatile and reliable solution for outdoor events. Their lightweight, durable, and modular nature ensures safety, stability, and easy setup. By carefully considering load capacity, span, height, wind resistance, and integration with lighting and sound systems, engineers create structures that meet the specific requirements of each event, enhancing the overall experience for performers and attendees alike.
Packing Details: Total Weight: 950kg. Total Volume: 6cbm. Truss System 7x7x5m Portable Stage 6.1x6.1m Height 0.8-1.2m 1.22x1.22m modular stage Versatility: The modular design allows for easy setup and customization to fit various venue sizes and layouts. Durability: Constructed from high-quality aluminum and wooden materials, ensuring stability and longevity even in outdoor environments. Safety: Sturdy stage braces, adjustable bases, and stairs provide a secure platform for performers and equipment. Convenience: Portable stage components and truss sections are designed for easy transportation and assembly, making it ideal for touring events. Whether you're organizing a music festival, outdoor concert, or corporate event, this concert stage truss system offers unmatched versatility, durability, and safety for your production needs.
Stage Platform: Each stage topping measures 4x4ft (1.22x1.22m), providing a spacious and sturdy performance area. Constructed from high-grade aluminum and reinforced with wooden materials for exceptional durability and stability. The system includes 40 stage toppings, offering ample space for performers, bands, and equipment setups. With 93 stage braces and 54 stands featuring extendable tubes and adjustable bases, setup and customization are effortless and secure. Two wooden stage stairs with 5 steps each ensure safe and convenient access to the stage for performers and crew members.
Our exquisite Custom 80x80x40ft Outdoor Indian Event Lighting Truss tailored specifically to elevate your event to unprecedented heights. With its impeccable craftsmanship and sophisticated design, this truss embodies the perfect union of functionality and aesthetic appeal.Its 2m wide line array trussing ensures seamless integration with state-of-the-art sound systems, providing impeccable audio dispersion and enhancing the overall sonic experience for your audience.This spectacular truss offers ample space to accommodate mesmerizing lighting arrangements, creating a captivating atmosphere that will leave a lasting impression on your guests. Its versatility allows for endless customization options, enabling you to effortlessly adapt the truss according to the unique demands of your event.
Specifications: Roof Frame Dimensions: 9x6x6m Platform Sizes: 8.54x6.1m and 7.32x4.88m Truss Material: Aluminum Packing Weight: Roof - 1300kg, Roof Components - 1850kg, Stage - 900kg Packing Volume: Roof - 10cbm, Roof Components - 16cbm, Stage - 6cbm
Crafted with precision, the square truss structure boasts exceptional durability and stability, ensuring a safe and secure environment for performers and equipment. Consisting of 12.00m front and side beams, 9.00m pillars, towers, and various additional sections, this truss system delivers unmatched versatility.The roof components are ingeniously designed, featuring spigot multi cubes for optimal strength and stability. Complemented by connect plates, clamps, and double clamps, the roof canopy offers a durable and stylish covering. Choose from our standard blue PVC material or customize the color to suit your specific event requirements.
Stage Platform: Size: 36x36ft (approximately 11x11m). Height: Adjustable from 0.6m to 1m. Material: Wooden tops for the platforms, providing a stable and durable surface for performers and equipment. Stairs: Includes 2 sets of wooden-topped stairs, each with 4 steps, offering convenient access to the stage. Additional Components: Aluminium Assembly Stage: Consists of 81 pieces of 4x4ft (1.22x1.22m) wooden-topped platforms. Supported by 180 stage braces, 100 stands with extendable tubes, and 100 stage adjustable bases. Provides additional staging area or can be used separately for various event setups.
